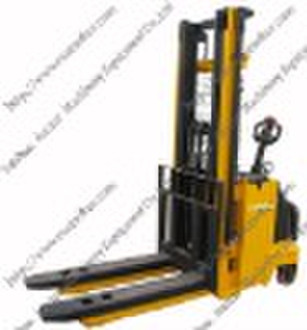

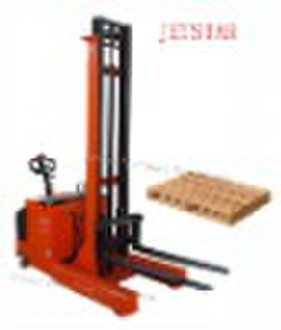

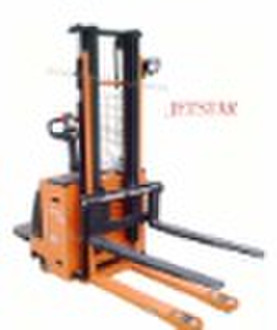

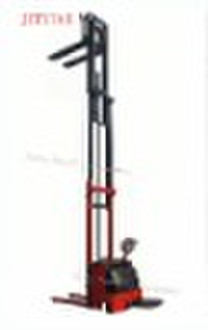

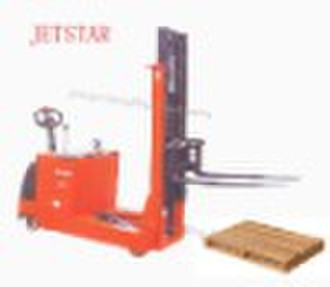

JST-CDD series Electric Stacker
original price: 2 000 USD
Mary Jiang
Contact person
Basic Information
| Type | Powered Pallet Truck |
|---|---|
| Power Souce | DC Motor |
| Place of Origin | Jiangsu China (Mainland) |
| Brand Name | Jetstar |
| Model Number | JST-CDD 10 |
| Rated Loading Capacity | 1000 kg |
| Max. Lifting Height | 5500 mm |
| Min. Lifting Height | 90 mm |
| Fork Length | 1150 mm |
| Fork Width | 160 mm |
| Overall Dimensions | 2200*850*2200 mm |
Electric Stacker |Electric Forklift | Electric Pallet Stacker These trucks have following features and benefits,human system engineering design,continusously variable driver,wide view mast assembly made of Germany steel,maximum lifting height 6 meters,with optional standing plat. Large power separately excited motorHowell type stepless adjusting speedEmergency reverse functionBraking at no starting functionRegenerative braking functionOptional speed & working modesPressure compensation functionLow pressure alarming function Specification 1KG=2.2LB 1INCH=25.4MM ModelUnitJST-CDD 10JST-CDD 12JST-CDD 15Rated load capacitykg100012001500Load centermm600600600PowerTractive-type BatteryManipulationTramp/Standing steer type(with standing pateform)Std.type lifting height (max)mm1600/2500/2900/3300/5500Fork min. heightmm≤90≤90≤90Turning radiusmm142514251650Fork lengthmm360360340Axis spacemm122812281450Overall lengthmm180018001988Overall widthmm8508501000Overall heightmm1975/1785/1985/2185Std.max lifting heightmm1975/2990/3390/3790/5940Standard forkmm1150*160*701150*180*701150*180*70Fork overall widthmm570570570/680Fork individual widthmm250210320Traveling speedkm/h4/64/64/6Lifting speedmm/s80/13080/13080/130Lowering speedmm/s110/90110/90110/90Gradient%5/85/85/8Braking typeElectromagnetic brakingDriving wheel dimensionmmΦ250*100Φ250*100Φ250*100Loading wheel dimensionmmΦ80*70*2Φ80*70*2Φ80*70*2Balance wheel dimensionmmΦ156*50Φ156*50Φ156*75Driving motorkw1.21.21.2Lifting motorkw2.22.22.2Battery(Voltage/Capacity)V/Ah24/16524/16524/210Controling typeSeries excited electric controller,stepless adjusting speedWeightkg650/770/790/810860/880/900
Delivery terms and packaging
Packaging Detail: export packing Delivery Detail: 15 days
Port: Shanghai
