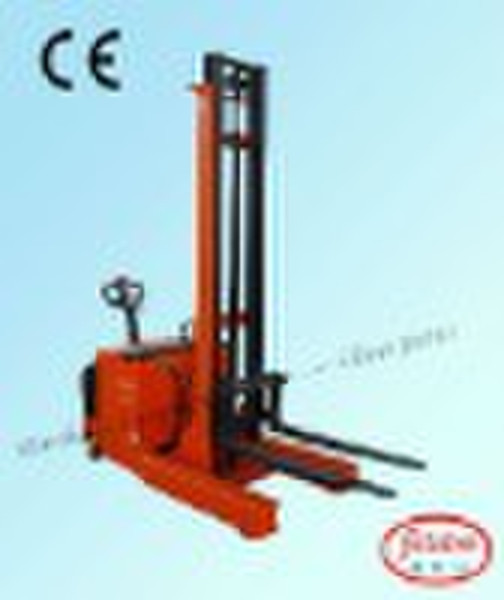

Electric Reach Stacker for double decked pallet
original price: 3 500 USD
Mary Jiang
Contact person
Basic Information
| Type | Powered Pallet Truck |
|---|---|
| Power Souce | DC Motor |
| Place of Origin | Jiangsu China (Mainland) |
| Brand Name | Jetstar |
| Model Number | JST-CDD |
| Rated Loading Capacity | 1500kg |
| Max. Lifting Height | 3000mm |
| Min. Lifting Height | 90mm |
| Fork Length | 1150mm |
| Fork Width | 160mm |
| Overall Dimensions | 2600*940*1860mm |
Electric Reach Stacker Electric Reach Stacker | Counter balance design special available for nonstandard rack and narrow aisle. The mast could be forward or backward and this is convenient for the goods loading or unloading. 1. There is no bolster leg 2. Adjustable fork width is suitable for different pallet 3. Original Germen made mast and CURTIS controller to keep the high quality and good performance. 4. Three lowering speed make convenient unloading Both of these counterbalanced pallet stackers include rechargeable batteries and can be purchased with an optional battery charger.We also can design to meet you requirements. Technical Data 1KG=2.2LB,1INCH=25.4MM ModelUnitJST-CDD 15Overall dimension (L*W*H)mm2600×940×1860Max lifting speedmm2500Load centermm400Min. terrain clearancemm100Forward distance of mastmm560Wheel basemm1425Front treadmm854Max. lifting speedUnloadedmm/s132Loadedmm/s98Max. lowering speedUnloadedmm/s7.9Loadedmm/s7.1Max. traveling speedUnloadedmm/h157Loadedmm/h191Min.turning radiusmm2108Net weightWith batterykg1390without batterykg1140Traveling motor powerkw/v2.0/24Lifting motor powerkw/v2.0/24Storage batteryVoltageV24CapacityAh280
Delivery terms and packaging
Packaging Detail: export packing Delivery Detail: 15 workdays
Port: Shanghai
