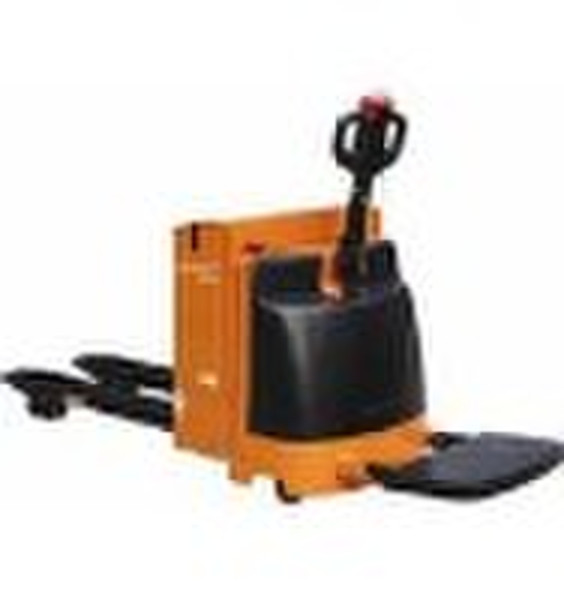

electric pallet jack HE25
original price: 2 000 USD
Mary Jiang
Contact person
Basic Information
| Type | Powered Pallet Truck |
|---|---|
| Power Souce | DC Motor |
| Place of Origin | Jiangsu China (Mainland) |
| Brand Name | Jetstar |
| Model Number | HE25 |
| Rated Loading Capacity | 2500kg |
| Max. Lifting Height | 205mm |
| Min. Lifting Height | 90mm |
| Fork Length | 1150mm |
| Fork Width | 160mm |
| Overall Dimensions | 1740*750*850mm |
Electric Pallet Jack Model UnitJHE25GeneralRated load capacitykg2500Load centermm600PowerBatteryManipulationTramp/Standing steer type(with standing pateform)Max lift heightmm205Lowered heightmm85Basic parametersTurning radiusmm1520Fork lengthmm230Axis spacemm1365DimensionsOverall lengthmm1740Overall widthmm750Standard forkmm1150*160*50Fork overall widthmm520/680Fork individual widthmm200/360Traveling speedkm/h4.5/6Lifting speedmm/s45/50Main performancesLowering speedmm/s45/40Gradient%5/8Braking typeHorizontalWheelDriving wheel dimensionmmΦ230*75Driving wheel typeElectromagnetic brakingLoading wheel dimensionmmΦ80*70*2Balance wheel dimensionmmΦ100*40Driving motorkw1.5MotorLifting motorkw0.8Battery(Voltage/Capacity)V/Ah24/210Controling typeSeries excited electric controller,stepless adjusting speedWeightkg460
Delivery terms and packaging
Packaging Detail: export packing Delivery Detail: 15 days
Port: shanghai
Payment term
Telegraphic transfer
-
Payment Methods
We accept:
