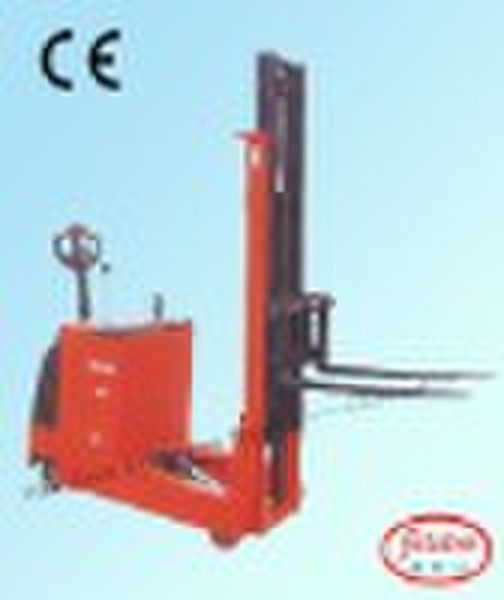

Electric Counter balance Stacker for double decked
original price: 1 500 USD
Mary Jiang
Contact person
Basic Information
| Type | Powered Pallet Truck |
|---|---|
| Power Souce | DC Motor |
| Place of Origin | Jiangsu China (Mainland) |
| Brand Name | Jetstar |
| Model Number | JQYD |
| Rated Loading Capacity | 1500kg |
| Max. Lifting Height | 3000mm |
| Min. Lifting Height | 90mm |
| Fork Length | 1150mm |
| Fork Width | 160mm |
| Overall Dimensions | 2600*940*1860mm |
ElectricCounterbalance Stacker WalkieTruck ElectricWalkie Stacker : Counter balance design special available for nonstandard rack and narrow aisle. The mast could be forward or backward and this is convenient for the goods loading or unloading. 1. There is no bolster leg 2. Adjustable fork width is suitable for different pallet 3. Original Germen made mast and CURTIS controller to keep the high quality and good performance. 4. Three lowering speed make convenient unloading Both of these counterbalanced pallet stackers include rechargeable batteries and can be purchased with an optional battery charger.We also can design to meet you requirements. Technical Data 1KG=2.2LB,1INCH=25.4MM ModelJPHZ-1025Rated capacitykg1000Max. lifting heightmm2500Free lifting heightmm140Rated load centermm400Min. terrain clearancemm80Max. lifting speedUnloadedmm/s140Loadedmm/s100Max. lowering speedUnloadedmm/s175Loadedmm/s181Max. traveling speedUnloadedmm/s6.3Loadedmm/s5.7Climbing slope with loaded%5MastForwardo1Backwardo7Rated pressure of oil pumpMpa12Drive motor powerkw1.2Oil pump motort powerkw2Min. turning radiusmm1375Braking Form-Electromagnetic brakingMin. right angle passage widthmm2895Adjusting distance of forkMinmm220Maxmm540Storage batteryVoltageV24CapacityAh240Weightkg235Net weightkg1470Front wheel loadedkgUnloaded4732065Rear wheel loadedkg997405
Delivery terms and packaging
Packaging Detail: export packing Delivery Detail: 15 workdays
Port: Shanghai
