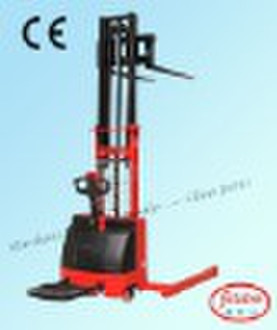

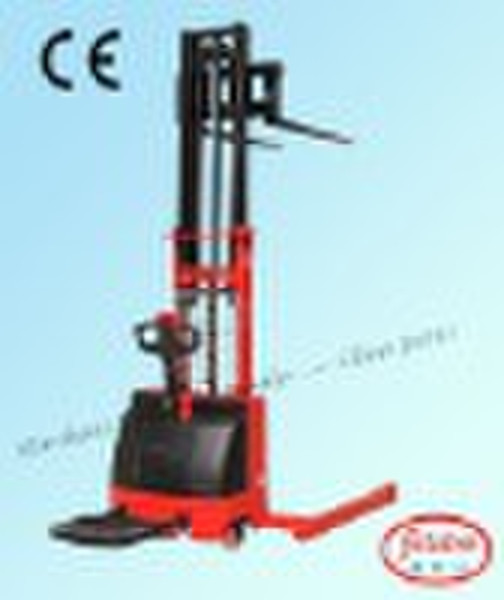

CDD series Electric Straddle Stacker for double de

Electric Straddle Stacker for double-decked palltet Electric stackers are designed to operate in narrow passage and limited space,and are idealfacilities to load/unload and stack goods in stacking warehouses,super-market and workshopetc. These trucks have following features and benefits,human system engineering design,continusously variable driver,wide view mast assembly made of heavy duty steel,maximum lifting height 6 meters. Adjustable width forks Straddle legs Super-thin body and heavy duty design Low noise,no pollution and reliable performance Operating steady and flexible Large power separately excited motor Howell type stepless adjusting speed Emergency reverse function Braking at no starting function Regenerative braking function Optional speed & working modes Pressure compensation function Low pressure alarming function Main Configurations American CURTIS electric controller,handle,contactor American CURTIS accelerator and electric meter Swiss BUCHER pump station Battery and driving wheel from China or imported HONGKONG oil cylinder Intelligent batteryLifting capacity up to 1500kg (3,300 lbs). A range of lift heights up to 5500mm (216 in). All trucks are supplied complete withheavy-duty batteries and -chargers. Specification ModelUnitCDD10CDD12CDD15Rated load capacitykg100012001500Load centermm600600600PowerTractive-type BatteryManipulationTramp/Standing steer type(with standing pateform)Std.type lifting height (max)mm1600/2500/2900/3300/5500Fork min. heightmm≤90≤90≤90Turning radiusmm142514251650Fork lengthmm360360340Axis spacemm122812281450Overall lengthmm180018001988Overall widthmm8508501000Overall heightmm1975/1785/1985/2185Std.max lifting heightmm1975/2990/3390/3790/5940Standard forkmm1150*160*701150*180*701150*180*70Fork overall widthmm570570570/680Fork individual widthmm250210320Traveling speedkm/h4/64/64/6Lifting speedmm/s80/13080/13080/130Lowering speedmm/s110/90110/90110/90Gradient%5/85/85/8Braking typeElectromagnetic brakingDriving wheel dimensionmmΦ250*100Φ250*100Φ250*100Loading wheel dimensionmmΦ80*70*2Φ80*70*2Φ80*70*2Balance wheel dimensionmmΦ156*50Φ156*50Φ156*75Driving motorkw1.21.21.2Lifting motorkw2.22.22.2Battery(Voltage/Capacity)V/Ah24/16524/16524/210Controling typeSeries excited electric controller,stepless adjusting speedWeightkg650/770/790/810860/880/900
